Every system has its environment variables already defined and initialized with some values. At the shell prompt, type the command env to display these variables known to your current shell session started on the system. Since these variables get to be initialized through many scripts, some originating in the system's profile (somewhere relative to the /etc directory) and some other being sourced from the user's home directory (like ~/.bashrc), then two users may have different environment variables on the same system.
However, some of these environment variables dictate the startup and the behavior of applications launched on the same system, and two users may wonder why the startup of an application is not the same when started on the shell prompt. Even if the startup of the application is the same on the system, yet the application run time reflects different behavior when started by the two users (since the environment variables may have different values).
A similar situation can be seen in a cloud environment where systems are expected to have the same environment variables, and a system administrator may wonder why a middleware application is behaving differently on some systems. In this case, a middleware administrator has to dig deep to reveal these hidden values.
Just consider the situation where a variable specifies the maximum size of an XML object to be transmitted in the flow of a business object application, causing a problem escalation since data being sent is not being received at the other end! Armed with the script, envcompare.pl, the administrator can compare the system environment variables across the systems.
Here is a script, envcompare.pl, that can demistify the setting of environment variables on different systems. The script envcompare.pl displays a visual comparison between the ENV (environment) across many UNIX host servers. The hosts must be ssh'able from where the script is run. The environment of each host is saved as a group represented by a set variable, then ASPL set operators are invoked to compare the ENV of the hosts.
1. #!/usr/bin/perl 2. 3. use strict; 4. use warnings; 5. 6. # envcompare.pl compares the ENV across host names 7. # envcompare.pl -host host1 -host host2 [-host host3 ..] [-view comp2sets,sim]] 8. # envcompare.pl -host mm01 -host vienna 9. 10. usage() unless @ARGV > 1; 11. sub usage { print join "",<DATA>; exit; } 12. 13. my @hosts; 14. my $view = "sim"; 15. my $dbg = 0; 16. 17. 18. while (@ARGV) { 19. if ($ARGV[0] eq '-host') { 20. shift @ARGV; 21. my $host = shift; 22. push(@hosts,$host); 23. } 24. elsif ($ARGV[0] eq '-view') { 25. shift @ARGV; 26. $view = shift; 27. } 28. elsif ($ARGV[0] eq '-dbg') { 29. shift @ARGV; 30. $dbg = 1; 31. } 32. elsif ($ARGV[0] eq '-help') { 33. usage(); 34. } 35. else { 36. die "UNKNOWN OPTION $ARGV[0]\n\n"; 37. } 38. } 39. 40. usage() unless @hosts >=2; 41. 42. my $interpreter = "aspl -groupingclass SYSENVGROUP -wsname TRANSIENT -singlepass -dm 3"; 43. 44. # NOTE shebang arguments take priority over interpreter preceding -STDIN 45. #my $shebang = "#!/opt/ASPLv1.00/bin/aspl -groupingclass SYSENVGROUP -wsname TRANSIENT -singlepass -dm 1"; 46. my $shebang = ""; 47. my $s = "$shebang\n"; 48. 49. $s .= q~DEF FN cmp2sets := {gU {g\, %%1 %%2}{g\, %%2 %%1}{g&, %%1 %%2}}~ . "\n"; 50. $s .= "timeout 60\n"; 51. $s .= "displayoff\n"; 52. 53. # The host name can be used as the symbol of the ASPL variable, and it can also 54. # be used as the label name of the ASPL variable. 55. # We will create ASPL variables using the host names and labeling their grp1 with 56. # the same. 57. 58. foreach my $host (@hosts) { 59. if ($host =~ /^localhost$/i) { 60. $s .= "$host = ggenv(grp1,$host)\n"; 61. } 62. else { 63. # remote hostname call ggenvR() 64. $s .= "$host = ggenvR(grp1,$host,hostname,$host)\n"; 65. } 66. } 67. my @hosts2 = @hosts; 68. my $t = $hosts2[0]; 69. $hosts2[0] = $hosts2[1]; 70. $hosts2[1] = $t; 71. 72. my $ascmd = ""; 73. foreach (split(/\s*\,\s*/,$view)) { 74. ($_ =~ /^union$/i) && ($ascmd .= "gU @hosts\n") || 75. ($_ =~ /^funion$/i) && ($ascmd .= "fU @hosts\n") || 76. ($_ =~ /^dnion$/i) && ($ascmd .= "dU @hosts\n") || 77. ($_ =~ /^inter$/i) && ($ascmd .= "g& @hosts\n") || 78. ($_ =~ /^finter$/i) && ($ascmd .= "f& @hosts\n") || 79. ($_ =~ /^dinter$/i) && ($ascmd .= "d& @hosts\n") || 80. ($_ =~ /^finterc$/i) && ($ascmd .= "f&`c= @hosts\n") || 81. ($_ =~ /^finterc~$/i) && ($ascmd .= "f&`c~ @hosts\n") || 82. ($_ =~ /^fdiff$/i) && ($ascmd .= "f\\ @hosts\n") || 83. ($_ =~ /^fdiff2$/i) && ($ascmd .= "f\\ @hosts2\n") || 84. ($_ =~ /^sdiff$/i) && ($ascmd .= "gD @hosts\n") || 85. ($_ =~ /^useq$/i) && ($ascmd .= "f%U @hosts\n") || 86. ($_ =~ /^iseq$/i) && ($ascmd .= "f%& @hosts\n") || 87. ($_ =~ /^sim$/i) && ($ascmd .= "sim @hosts\n") || 88. ($_ =~ /^simc$/i) && ($ascmd .= "sim`fflc @hosts\n") || 89. ($_ =~ /^simz$/i) && ($ascmd .= "sim`fflz @hosts\n") || 90. ($_ =~ /^comp2sets$/i) && ($ascmd .= "FN cmp2sets($hosts[0],$hosts[1])\n") || 91. die "\n UNKNOWN SPECIFIER $_\n\n"; 92. } 93. 94. $s .= "displayon\n"; 95. $s .= $ascmd; 96. $s .= "v\n"; 97. 98. if ($dbg) { print "$s\n\n"; exit; } 99. 100. open(ASPL, "| $interpreter -STDIN") or die "ERROR OPENING A PIPE TO aspl: $! \n"; 101. print ASPL $s; 102. close ASPL; 103. 104. __END__ 105. 106. Use ASPL run time interpreter to compare the ENV across machines 107. in a cloud environment. 108. 109. envcompare.pl [-view SPECS] -host host1 -host host2 .. -host hostN [-dbg] 110. 111. specifying the SPECS is optional, and its is formed of a comma delimited 112. string of the following productions: 113. union displays the union of directories and files 114. funion displays the union of files 115. dunion displays the union of directories and subdirectories 116. inter displays the intersection directories and subdirectories 117. finter displays the intersection of files 118. dinter displays the intersection of directories and subdirectories 119. finterc displays the intersection where checksums are the same 120. finterc~ displays the intersection where checksums are different 121. fdiff displays the difference between 122. fdiff2 displays the difference between 2nd host and the 1st 123. sdiff displays the symmetric difference 124. useq displays the sequence alignment of the union 125. iseq displays the sequence alignment of the intersection 126. sim displays the similarity 127. simc displays the similarity for files with same checksum 128. simz displays the similarity for files with same ks 129. cmp2sets displays comparison of only the first two hosts 130. 131. You can specify any of the SPECS in any order, and that is the order 132. they will be displayed when the command terminate. 133. When -view is not specified, then default to display the similarity. 134. 135. At least two host names must be specified. If localhost is used 136. then the ENV of the current host is gathered, and any other host name 137. is treated as a remote host. The remote hosts must be ssh configured 138. and ssh'able from the machine where this script is executed 139. otherwise the script will fail to gather the ENV of the remote host. 140. 141. For sequence alignment only the two hosts are subject to alignment, and 142. specifying three hosts will mediate the alignment (see ASPL documentation). 143. 144. -dbg shows the ASPL code without executing it 145. 146. Example: 147. envcompare.pl -host localhost -host mm02 -host mm03 148. envcompare.pl -host localhost -host vienna -view iseq,sim 149. 150.

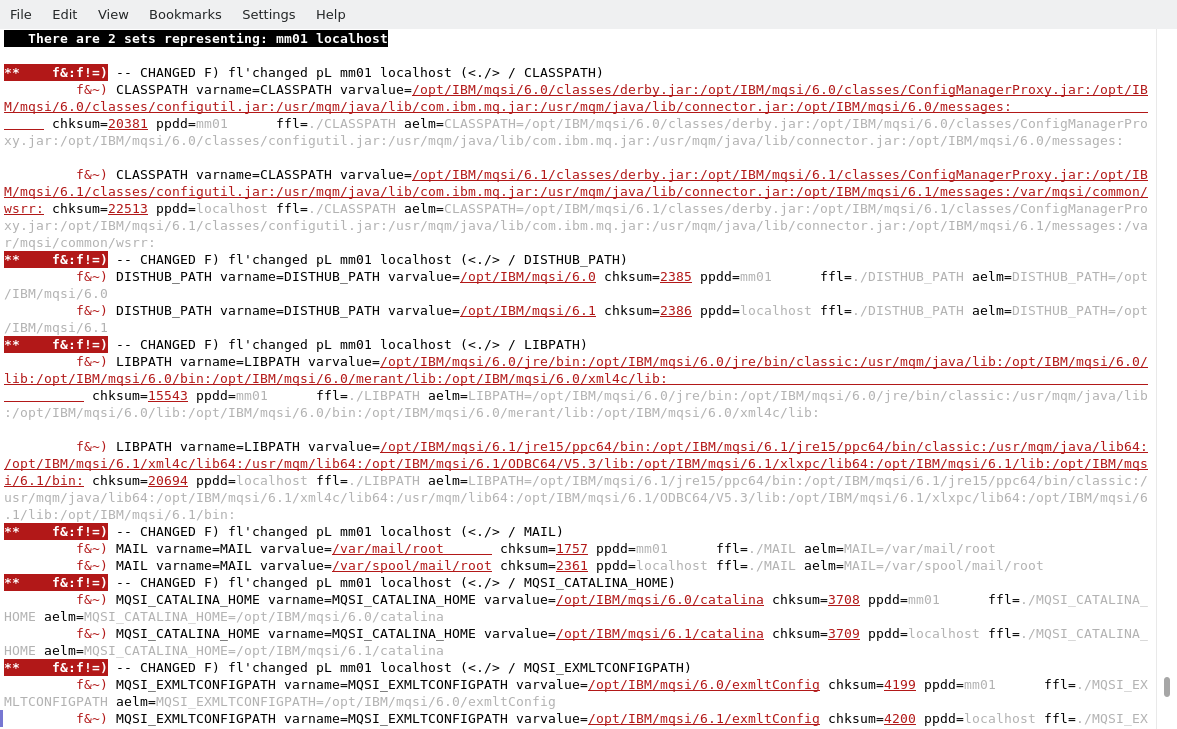

We want to see the difference between two servers where IBM MQSeries Integrator has been installed. The following figure shows the difference between both servers; consider the difference between the CLASSPATH, LIBPATH, DISTHUB_PATH, and MQSI_EXMLTCONFIGPATH.
The following shows the terminal when we run
# envcompare.pl -host localhost -host mm01
